Why does Cesium need+1 to load layer tilematrix and display it properly?

mcck · March 7, 2025, 10:36am

Cesium adds base map

cesiumConfig.baseLayer = new Cesium.ImageryLayer(new Cesium.WebMapTileServiceImageryProvider({
  url: `${tdtUrl}img_c/wmts?tk=${tdt_tk}`,
  layer: 'img',
  style: 'default',
  format: 'tiles',
  tileMatrixSetID: 'c',
  subdomains: subdomains,
  maximumLevel: 18,
  tilingScheme: new Cesium.GeographicTilingScheme(),
  tileMatrixLabels: Array.from({ length: 18 }, (v, k) => k + 1),
}));

tileMatrixLabels: Array.from({ length: 18 }, (v, k) => k + 1),Here+1 is because the layer of the sky map starts from 1, which is normal.

base map GetCapabilities

image917×664 127 KB

Using the wmts service published by Geoserver

viewer.scene.imageryLayers.add(
  new Cesium.ImageryLayer(
    new Cesium.WebMapTileServiceImageryProvider({
      url: 'http://172.88.0.31:9090/geoserver/cloud/ht/gwc/service/wmts',
      layer: 'ht:t_ds_imp_ynsbj_cn2k',
      style: '',
      tileMatrixSetID: 'CGCS2000',
      format: 'image/png',
      maximumLevel: 20,
      rectangle: Cesium.Rectangle.fromDegrees(94.5, 21.11, 109.5, 29.3),
      tileMatrixLabels: Array.from({ length: 20 }, (v, k) => `CGCS2000:${k + 1}`),
      tilingScheme: new Cesium.GeographicTilingScheme()
    })
  )
);

Why does the tileMatrixLabels layer sent by Geoserver require+1 when using the same 2000 coordinate system? And my service started from scratch.

image935×770 162 KB

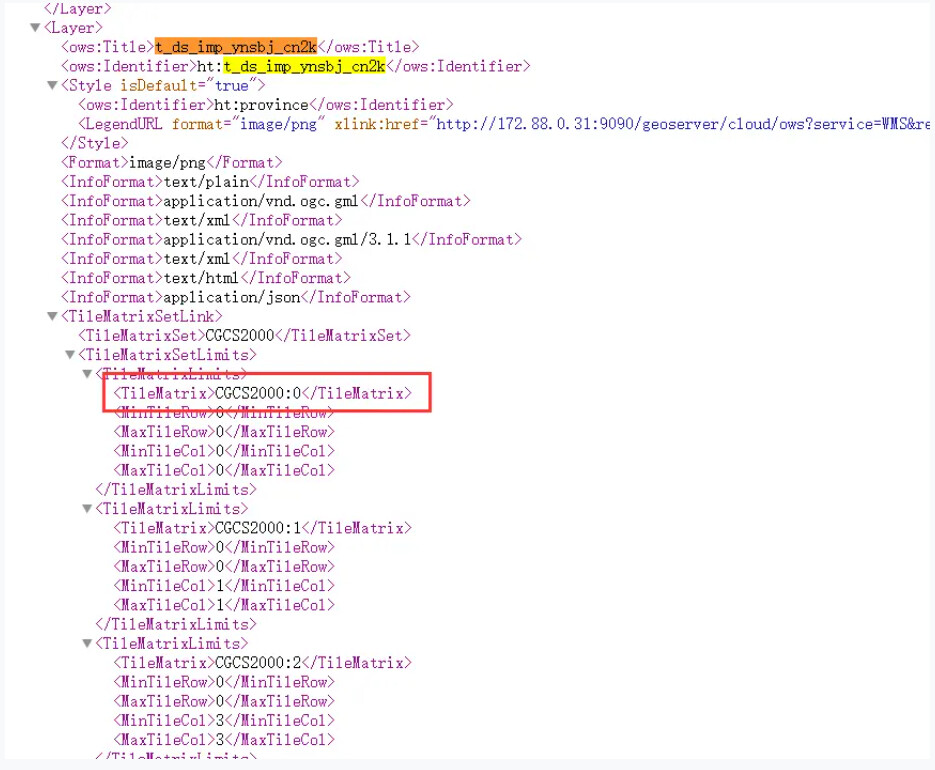

geoserver GetCapabilities
