Polyline volume use image material, but the image overturn on the back side

CesiumJS
1

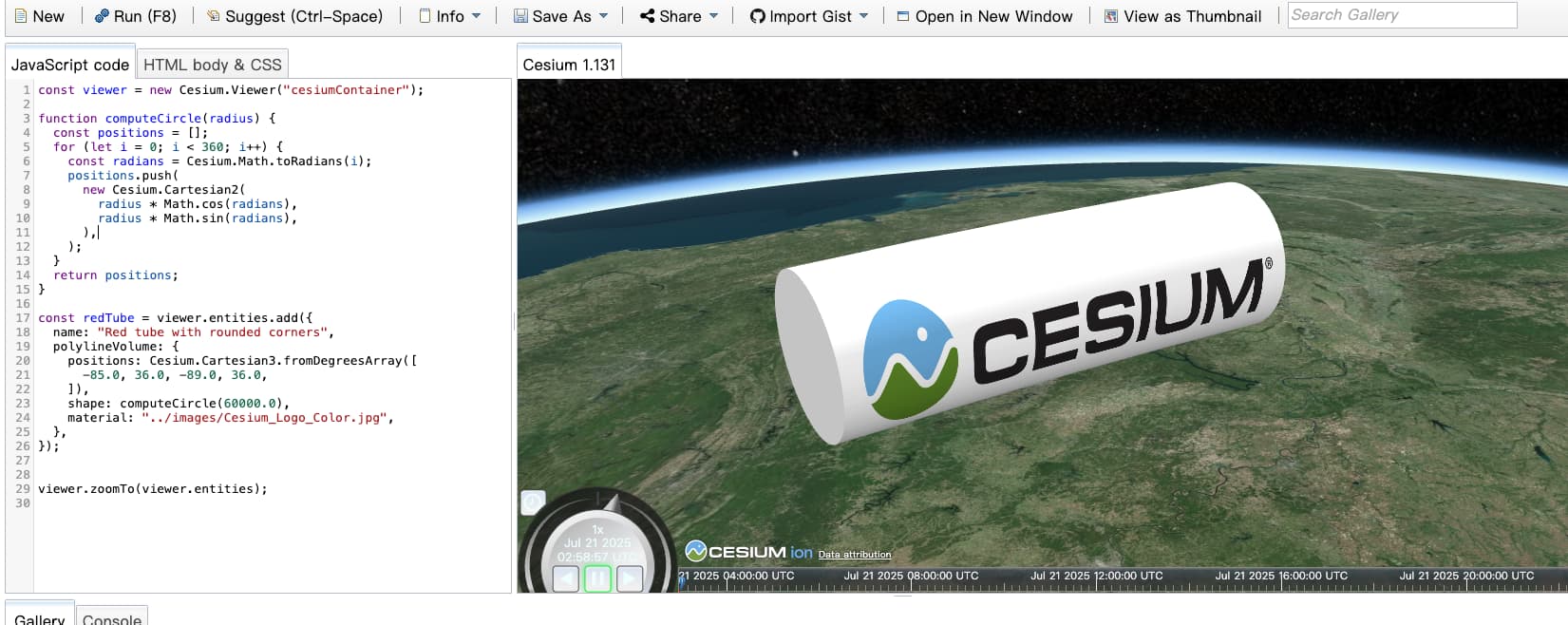

e3f8a651df408da510390e33e46ca445
e3f8a651df408da510390e33e46ca4451651×658 125 KB

22949c1dbd6ba1cf42e050332d8bb59e
22949c1dbd6ba1cf42e050332d8bb59e1502×592 97.4 KB

  • My aim is for this picture material to wrap around the surface
    the code is :
    const viewer = new Cesium.Viewer(“cesiumContainer”);

function computeCircle(radius) {
const positions = ;
for (let i = 0; i < 360; i++) {
const radians = Cesium.Math.toRadians(i);
positions.push(
new Cesium.Cartesian2(
radius * Math.cos(radians),
radius * Math.sin(radians),
),
);
}
return positions;
}

const redTube = viewer.entities.add({
name: “Red tube with rounded corners”,
polylineVolume: {
positions: Cesium.Cartesian3.fromDegreesArray([
-85.0, 36.0, -89.0, 36.0,
]),
shape: computeCircle(60000.0),
material: “../images/Cesium_Logo_Color.jpg”,
},
});

viewer.zoomTo(viewer.entities);

2

Hi @yydy1991, welcome to the community!

This is an interesting problem, and I don’t know of a simple way to solve it using PolylineVolumeGraphics. I tried generating two overlapping shapes, one for each side of the volume, but the seams between the two shapes are still visible. See this Sandcastle example.

image1055×633 68.9 KB

If the overlapping shapes don’t work for you, could you generate a glTF file with your desired geometry? This would give you a lot more control over the texture mapping.

3

Thank you very much, this solution can temporarily solve my problem.

I tried to edit fabric.source yesterday, however, due to my lack of knowledge, I was unable to achieve a satisfactory result.
