"Weak" Depth Test Against Terrain

CesiumJS
1

Hello:
I am running into some issues using depthTestAgainstTerrain.
depthTestAgainstTerrain is too strong for my use case. What I actually want is to always see the entity when its base point is visible, and to not see it at all when its base point is not. That is to say: I only want to depth test against terrain that is ‘in front’ of the entity, rather than terrain that is ‘behind’ it. Do you have ideas on how to achieve this? Here are some .gifs and some sandcastle code.

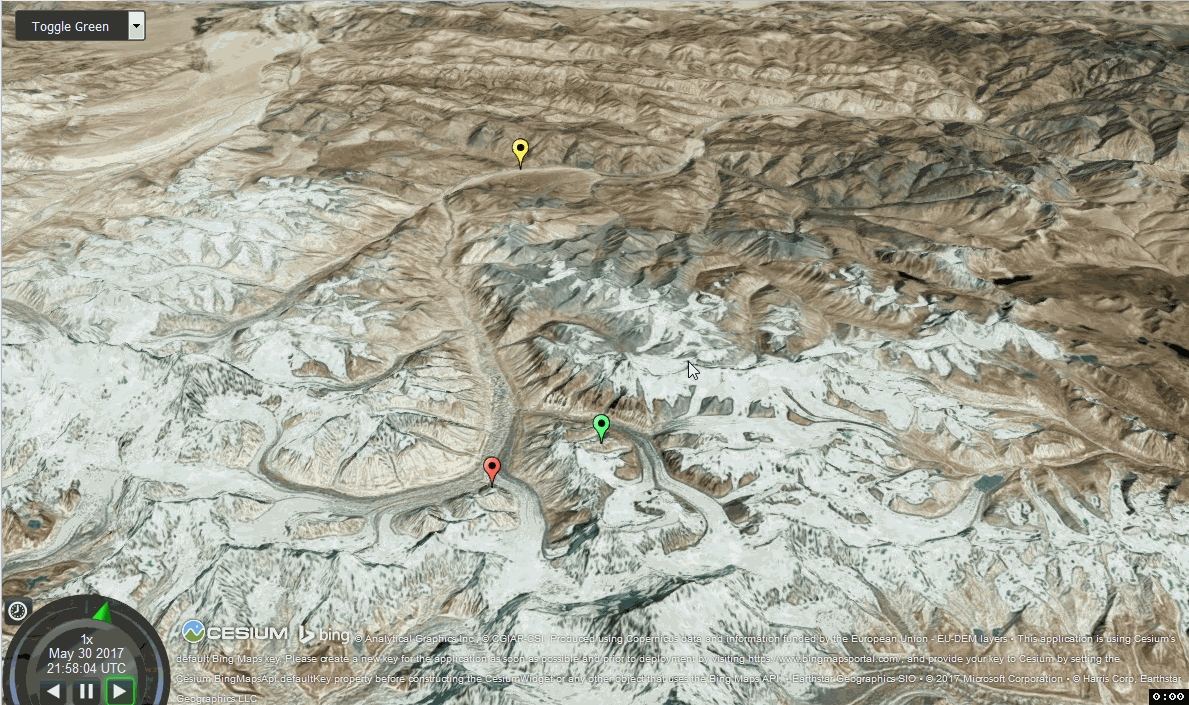

Depth testing succeeds because entities are hidden behind mountains (good!).



Depth testing can obscure parts of the feature that I want to show (looking for suggestions).

Sandcastle: http://cesiumjs.org/releases/1.33/Apps/Sandcastle/?src=Hello%20World.html&label=Showcases&gist=ec75d5c90a2e68ba7dd3fc1f93995ac9

Thanks in advance!

2

Hi there,

Thank you for the clear documentation! Sadly, we don’t yet have an easy way to determine whether entities are partially obscured like this since the depth logic happens in the shader. Getting this information would involve some pretty involved changes.

You can disable the depth test for a single billboard like in this example: http://cesiumjs.org/Cesium/Apps/Sandcastle/index.html?src=Billboards.html&label=Showcases

Hope that helps,

  • Rachel
3

Hi Rachel,

Thanks for the info Rachel.

Disabling the depth test for a single billboard while clamped to ground is nice. In order for it to be useful in a case like this, I’d need to be able to dynamically tell when to toggle it (via the
myBillboard.disableDepthTestDistance = Number.POSITIVE_INFINITY

``

property.

It would be nice if, say, the scene or globe or terrain provider object allowed you to pass in two points and ask if there is any terrain in between them. Do you know if a technique like that is possible?

Thanks!

4

Hi there,

We don’t have support for this currently built into Cesium, but it’s not too difficult of a problem, so here’s a code example: http://cesiumjs.org/Cesium/Apps/Sandcastle/?src=Hello%20World.html&label=Showcases&gist=822f432f2955dc9d57dee6d42f3632a6

Let me know if you need any clarifications.

Warning: globe.pick doesn’t necessarily give perfect results because of the asynchronous terrain loading, so be careful!

Hope that helps,

  • Rachel
5

Rachel,

Thanks for the example code. I put it into a different sandcastle to compare the solution with depth testing. It seems that hiding points/billboards by line of sight from the camera, similar to clamped to ground polygons would be a useful feature. In the meantime, we can try and implement something similar to the sandcastle and hope that we don't run into performance issues. If you have any comments on the solution or if there is a better way to implement what we are trying to accomplish, please let us know.

Thanks,
Adam

6

Thanks for sharing your code example, Adam! Would you consider contributing this code example to Cesium? I’m sure the community would find it useful. If you’re interested, see the contributing section here: http://cesiumjs.org/tutorials/Sandcastle-Tutorial/

Thanks,

  • Rachel
7

Curious if there’s been any update on this in the past 6 years. I run into this a lot particularly with labels. It’d be nice to show the full label in front of any terrain if the point the label is placed at has line of sight to camera, and hidden otherwise. Current behavior with depthTestAgainstTerrain enabled has individual letters hidden by terrain in my cases
